The existing 40-ft pedestrian bridge was badly corroded and deteriorated beyond repair.  Load rating had revealed that the bridge load carrying capacity was less than 2 tons and the bridge was closed to traffic. The City had limited budget and did not want to go through the environmental review and permitting requirements for a complete replacement structure. JMEC's solution was to replace the existing bridge with a new stronger steel truss and reused the existing bridge abutments.

JMEC has performed structural inspection and evaluation per CBC 2013 and AASHTO LRFD Guide Specifications for the Design of Pedestrian Bridges to ensure that the existing bridge abutments can support the new bridge.  JMEC reviewed shop drawings and provided structural observation during bridge lifting.  The new pedestrian bridge has a vehicular load limit of 10 tons in order to suit the existing foundation capacity.
Project Role:  Prime Design Consultant

Clients:  City of Concord

Schedule:  Construction was completed in 2017
Bridge Lifting using two Cranes
Corporate Office
165 Lennon Lane, Suite 106, Walnut Creek, CA 94598
Tel:  (925) 944-8999      Fax: (925) 944-9998

Copyright © 2024 JMEC Engineering Inc.  All rights reserved.

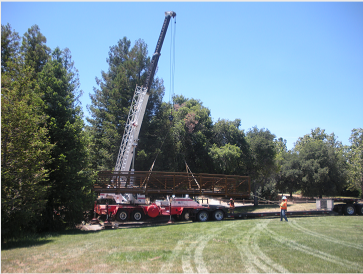

Lifting of Bridge

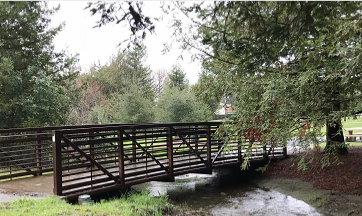

Final Position of Bridge
